JMOD Multiple Entry Horn Flatpack

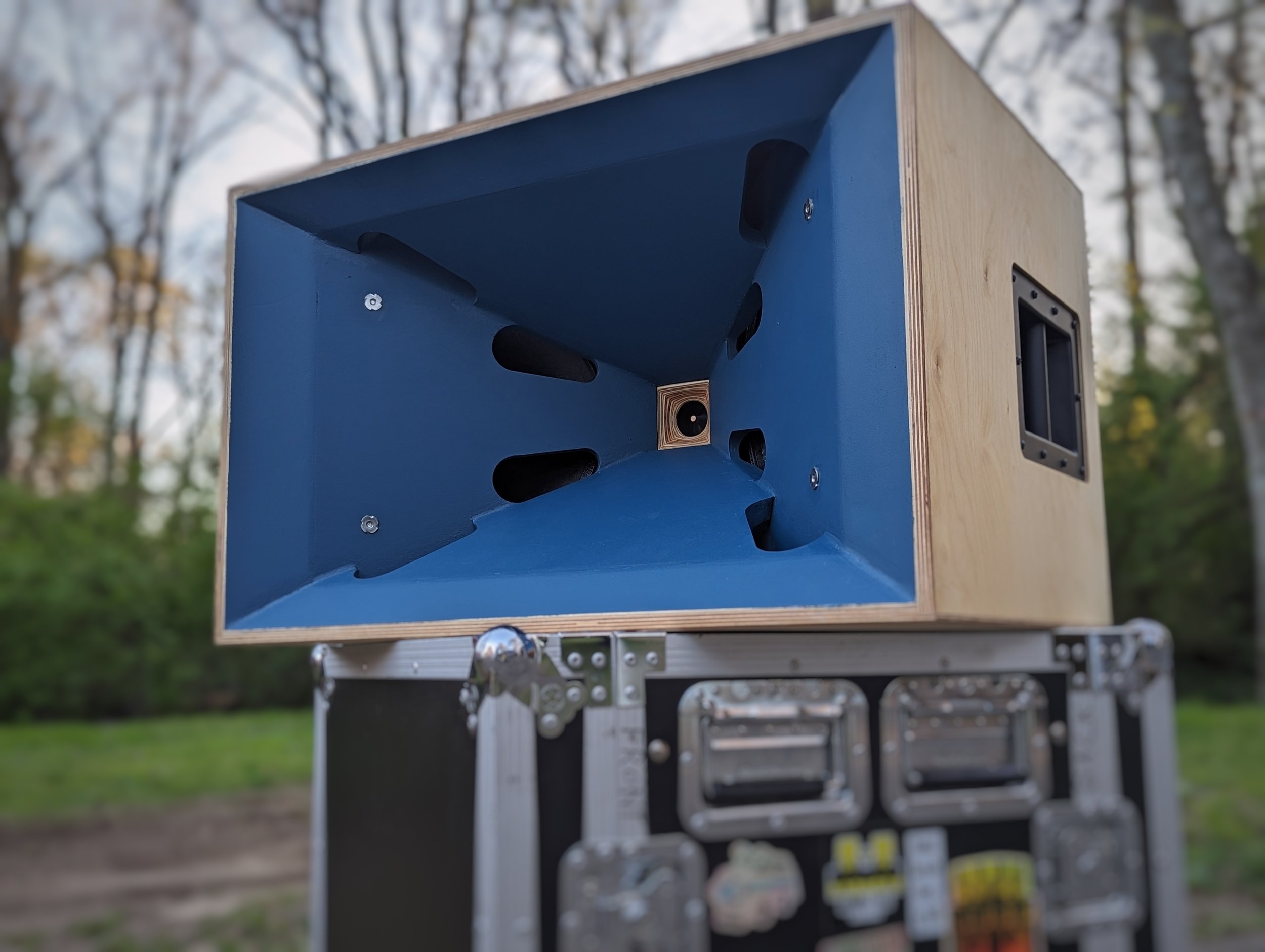

The JMOD Multiple Entry Horn is a 3-way point source loudspeaker design intended for PA sound reinforcement applications.
This flatpack kit includes all of the panels and 3D printed ports required to assemble ONE (1) JMOD. Panels are CNC cut using high quality Baltic birch plywood (12MM & 18MM). Some panels have excess material to ensure ease of assembly, so some degree of sanding & planing will be necessary to achieve proper fitment.
Please note that these are passive tri-amped speakers and require 3 channels of DSP & amplification. Options for a bi-amped version with a passive crossover between the MF/HF are coming soon, however you can incorporate a readily available B&C FB464 passive crossover to achieve this.
You will need to separately purchase 2x B&C 12NDL88 woofers and 1x B&C DCX464 coaxial compression drivers for each flatpack.
Handle cutouts are sized for standard Penn Elcom H1105 handles.
At this time, these flatpacks are only available for shipping to the contiguous US.
