The JMOD-M is an arrayable variant of the JMOD multiple entry horn that has been optimized for paired coupling in medium to large size deployments. When combined as shown, the array produces a 110°x55° constant directivity pattern. The size, spacing, and geometry of the arrayed unit is carefully designed to produce nearly full-range directivity control down to 100Hz.

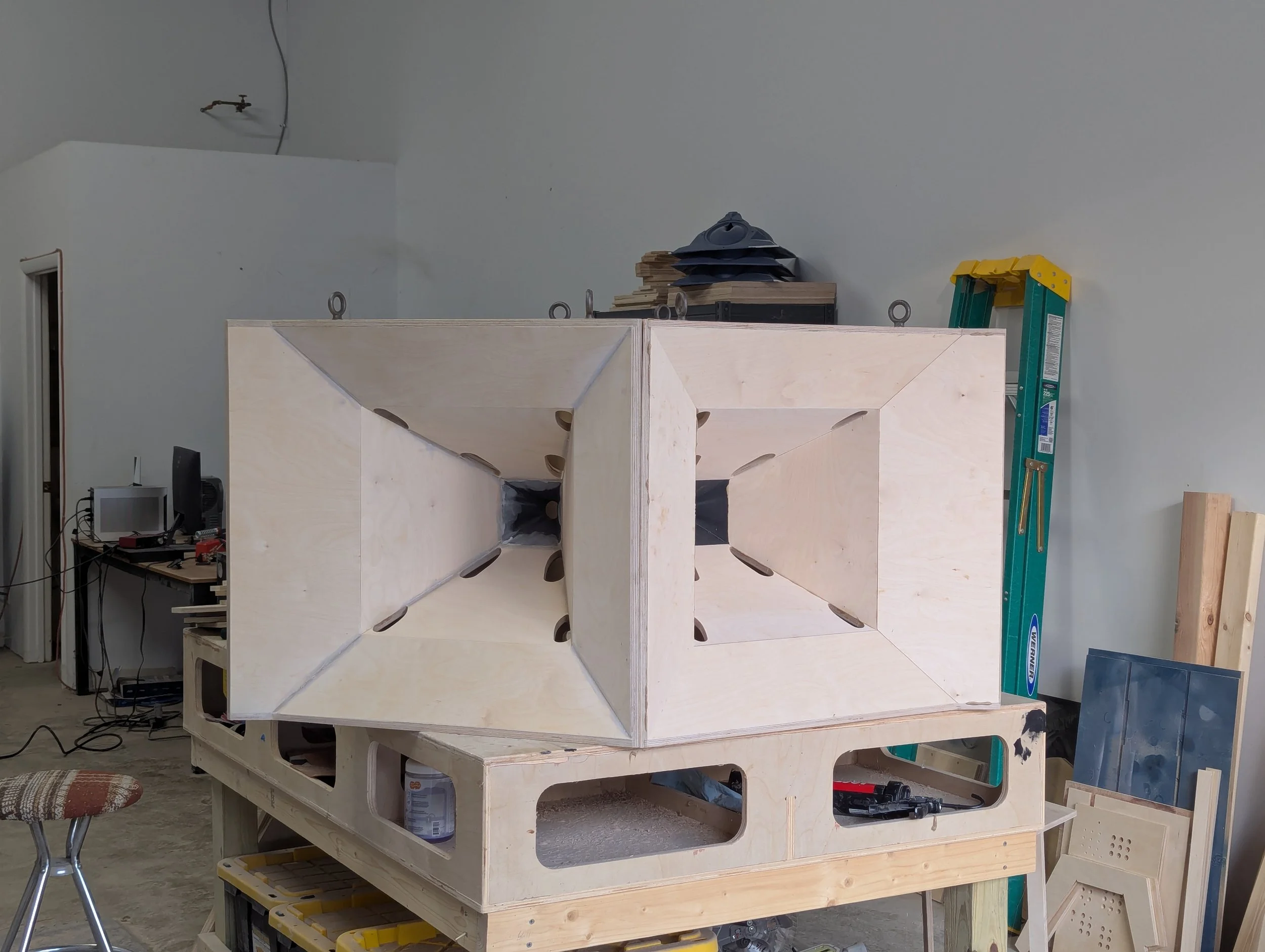

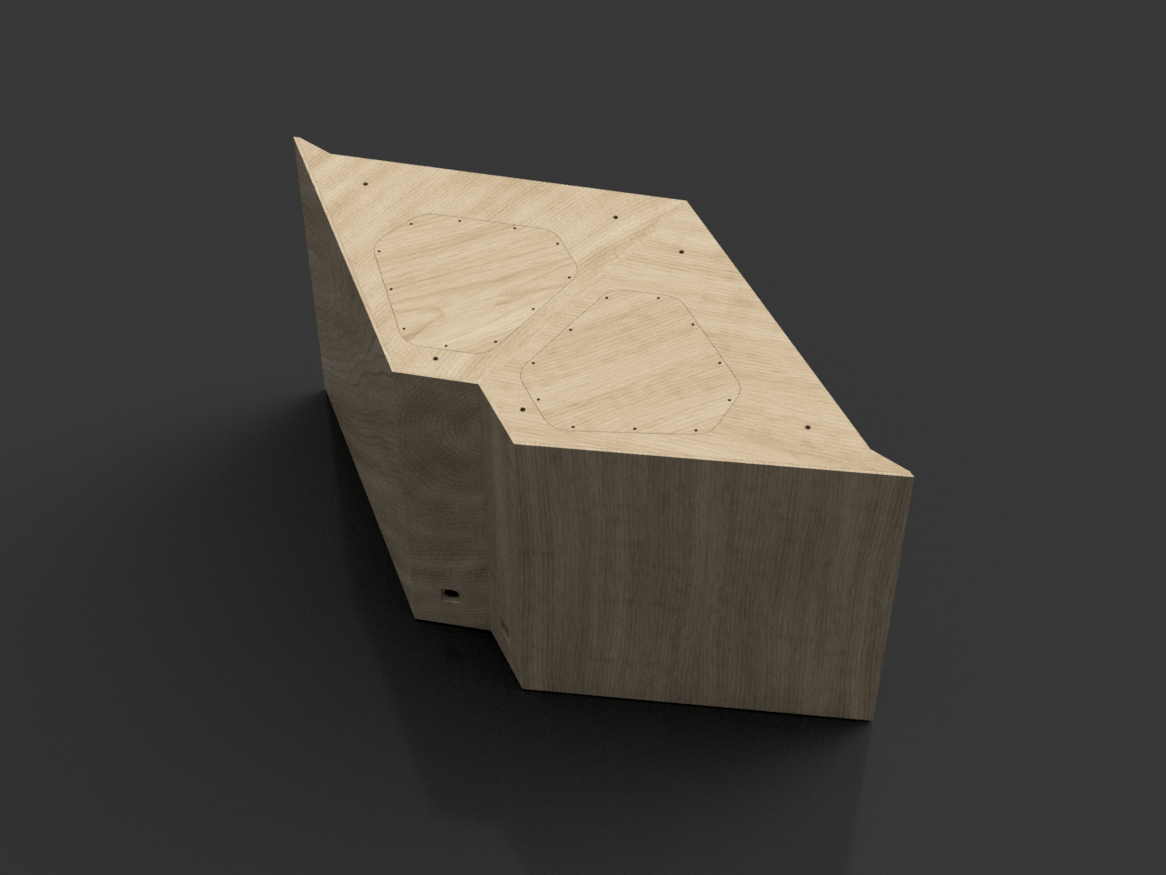

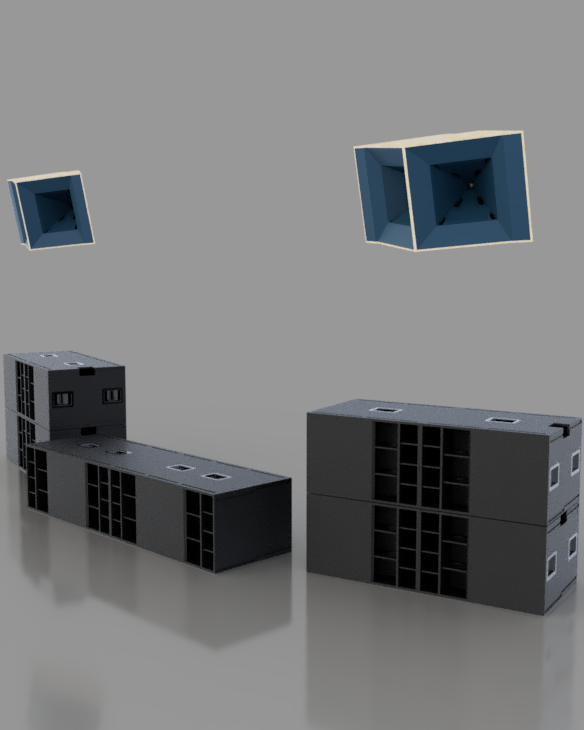

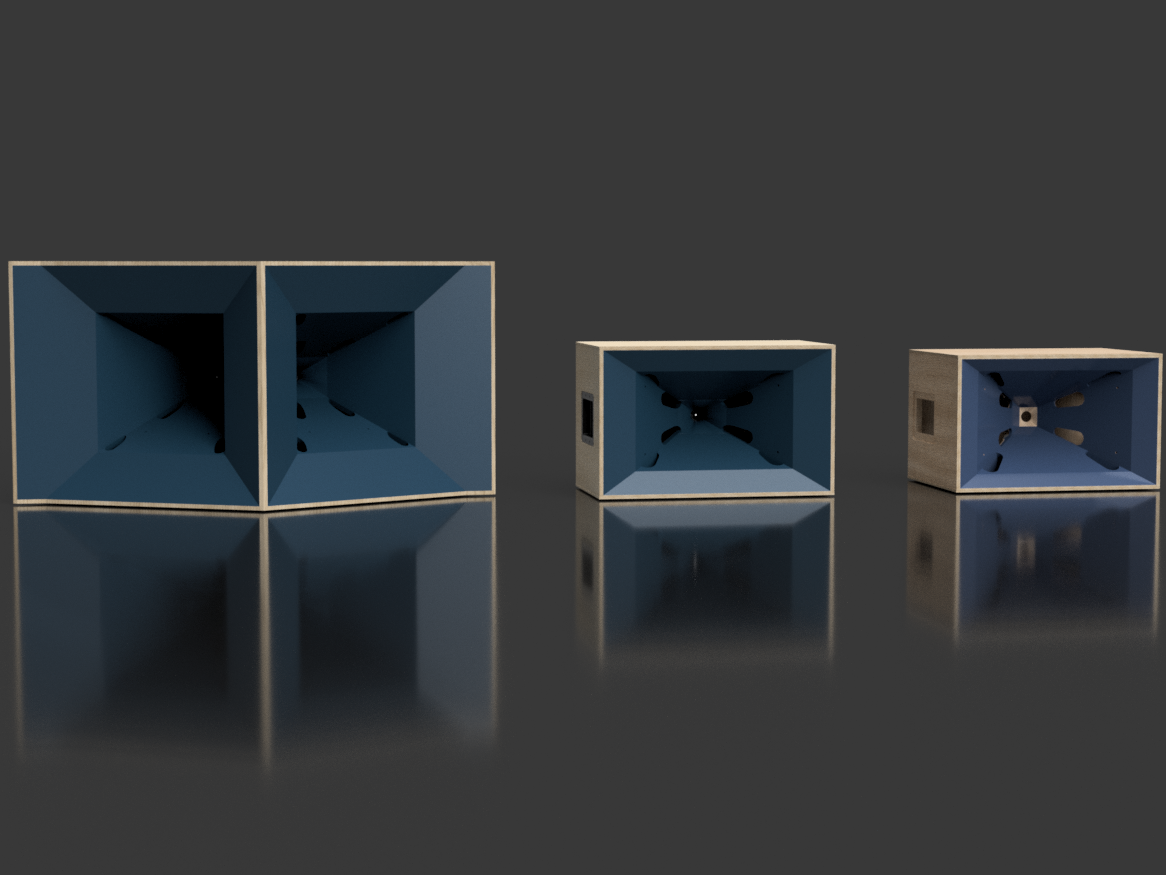

When combined, the arrayed module occupies a trapezoidal footprint that is 145cm wide by 63cm deep by 73cm tall. The JMOD-M arrayed module is 2.25x larger by volume than the existing JMOD 2.0 cabinet (as shown in image).

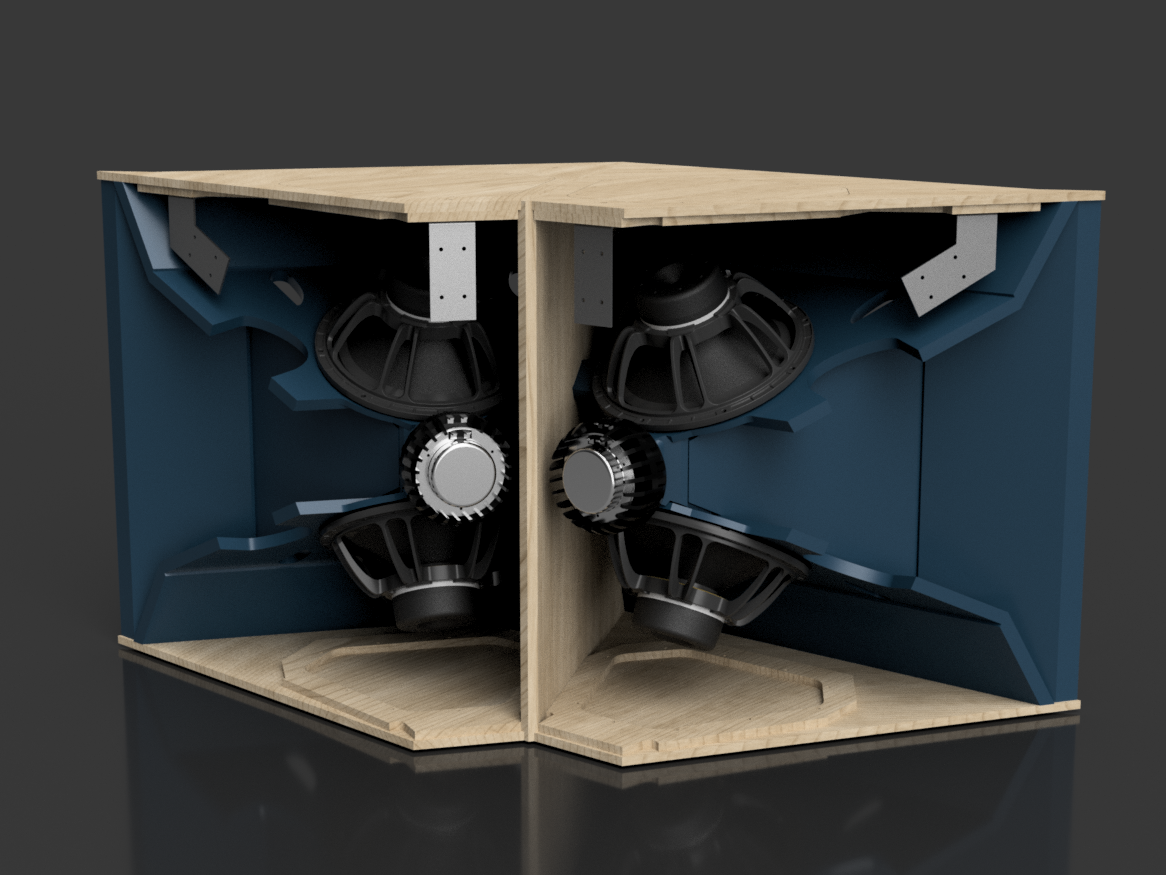

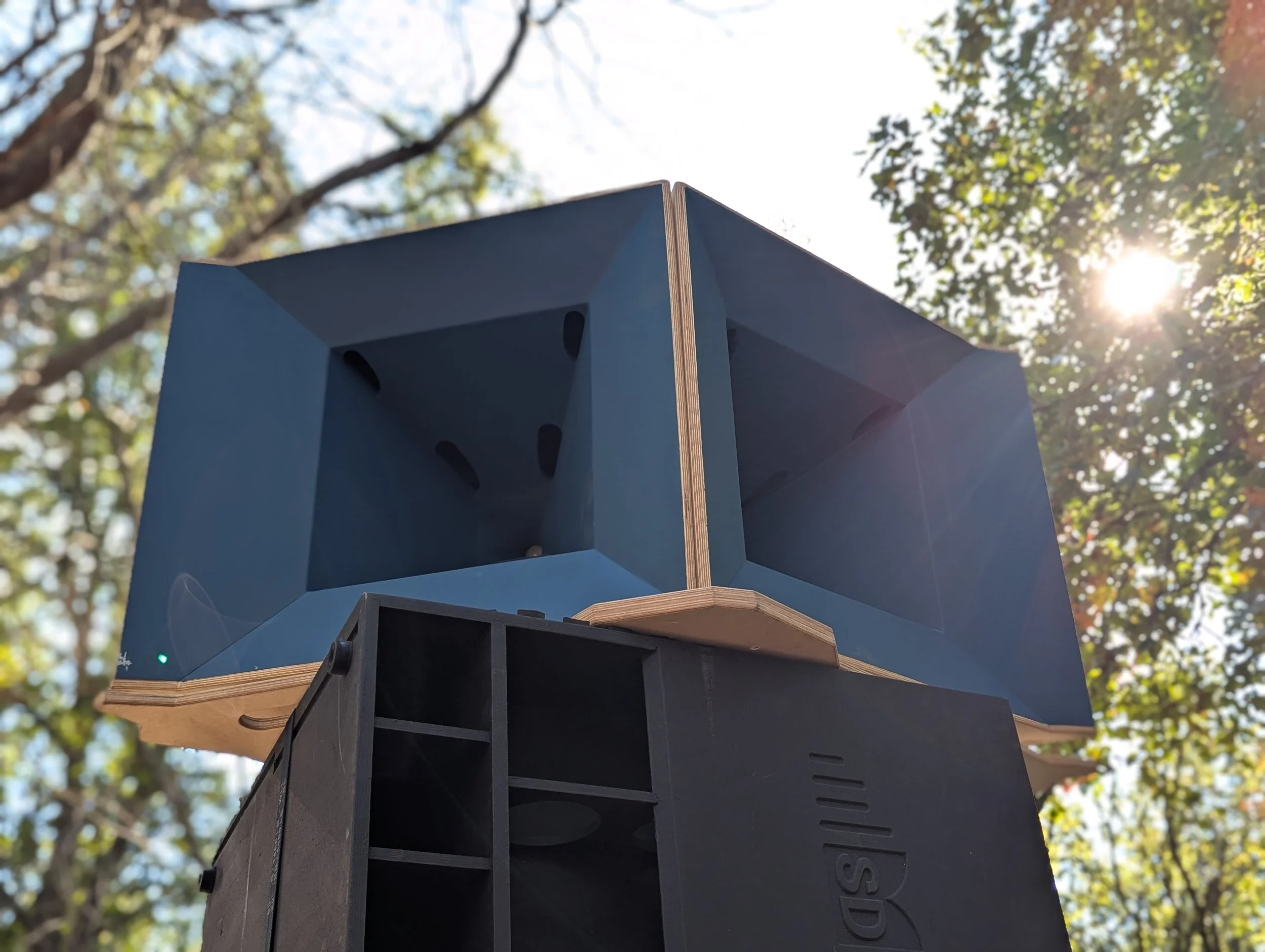

The unique extended outer flares aid in achieving directivity control and horn loading down to the required 100Hz without significantly adding additional size & weight. More importantly, the center-center distance between each module is able to be kept small enough for optimal coupling with the assistance of DSP.
Operating Frequency Range: 80-18,500Hz
Minimum Sensitivity: 106dB (@100Hz)
Maximum Working Output: TBD
Dispersion: 110x55 Constant Directivity
Horizontal Pattern Control: Down to 100Hz
Vertical Pattern Control: Down to 300Hz

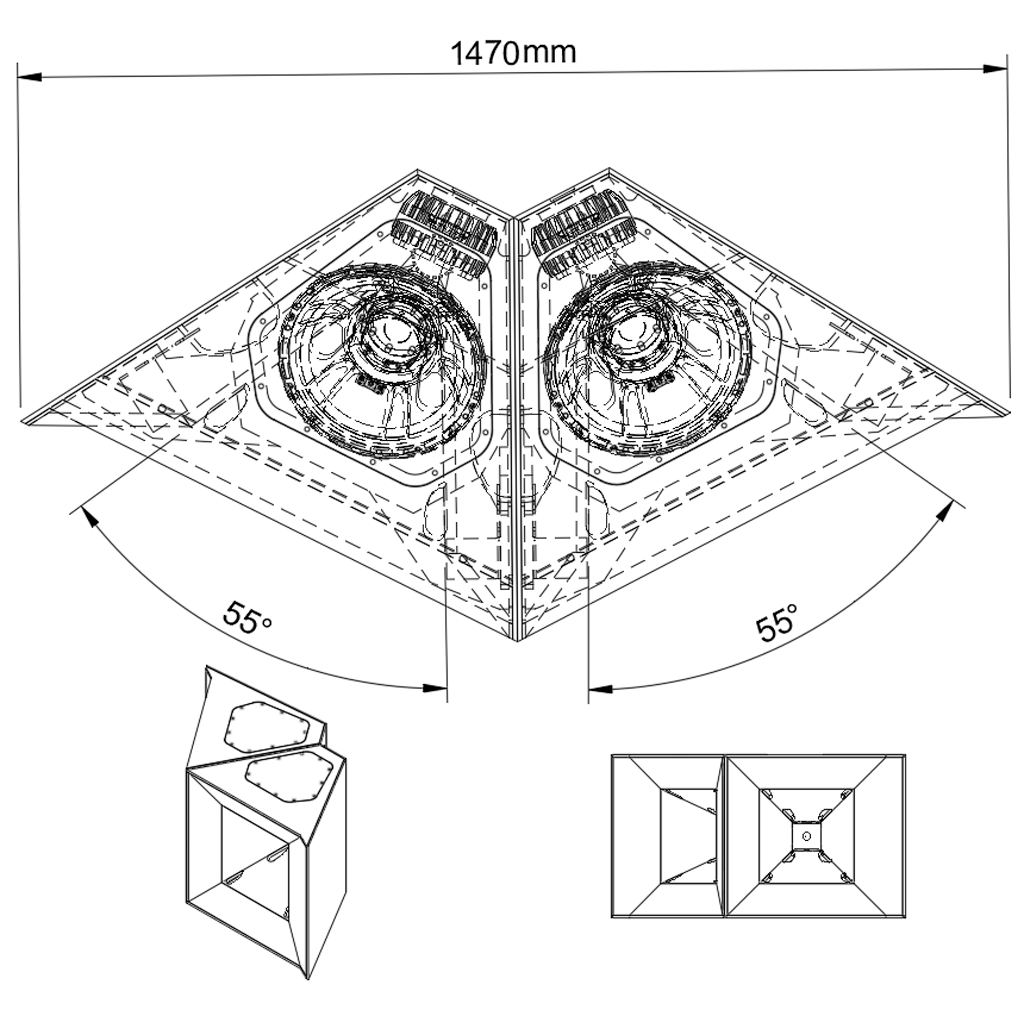

Dimensions: 145cm wide x 73cm tall x 63cm deep
Weight: 80KG / 176LBS

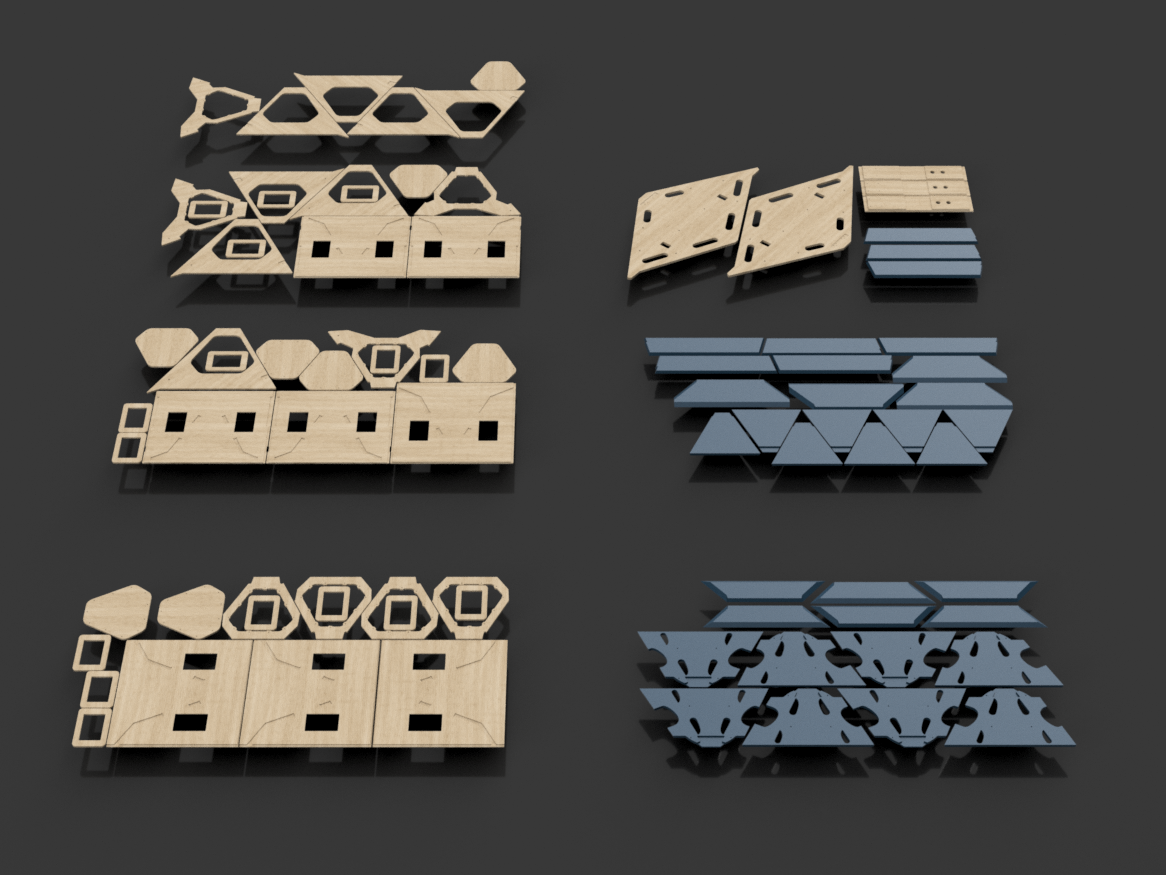

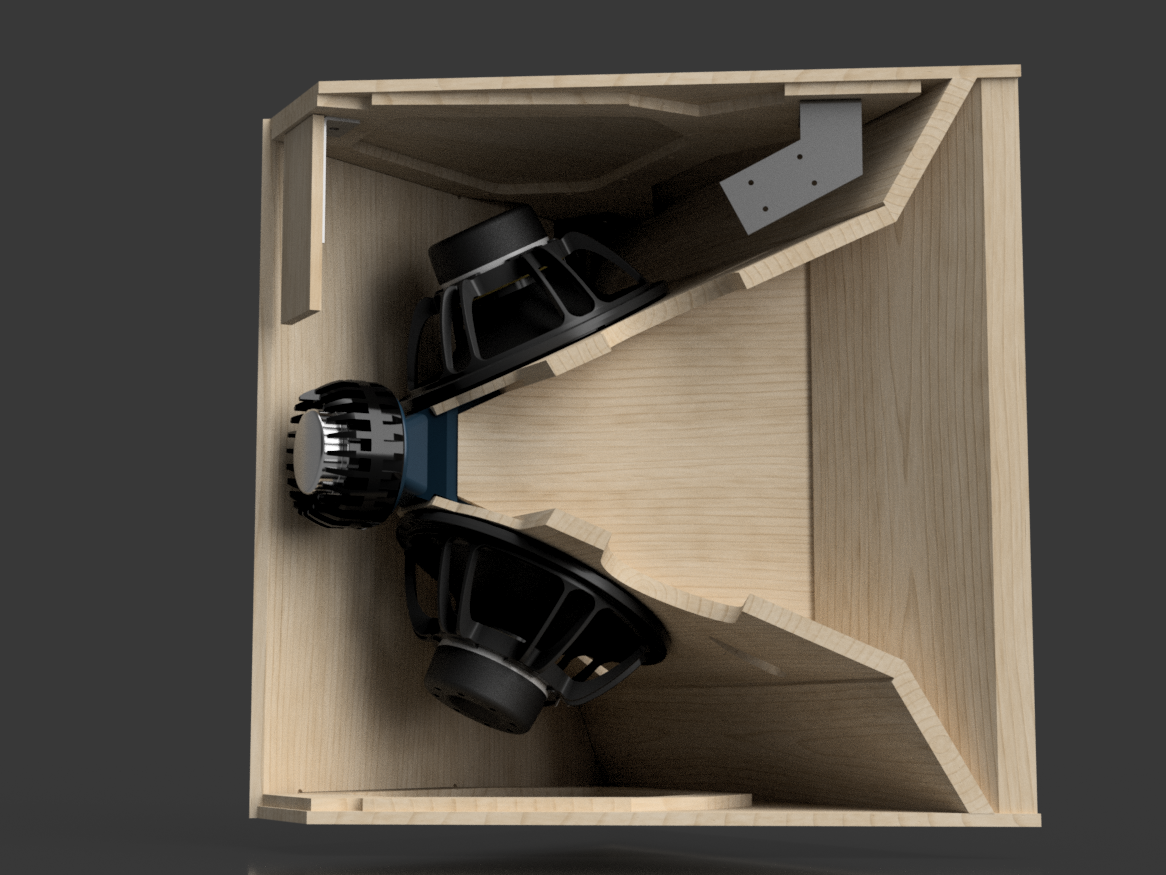

Drivers: 2x 12” Midbass OR 2x14” Midbass + 1x Coaxial Compression Driver
Amplification: Tri-amp or optional bi-amp with B&C FB464 passive crossover network

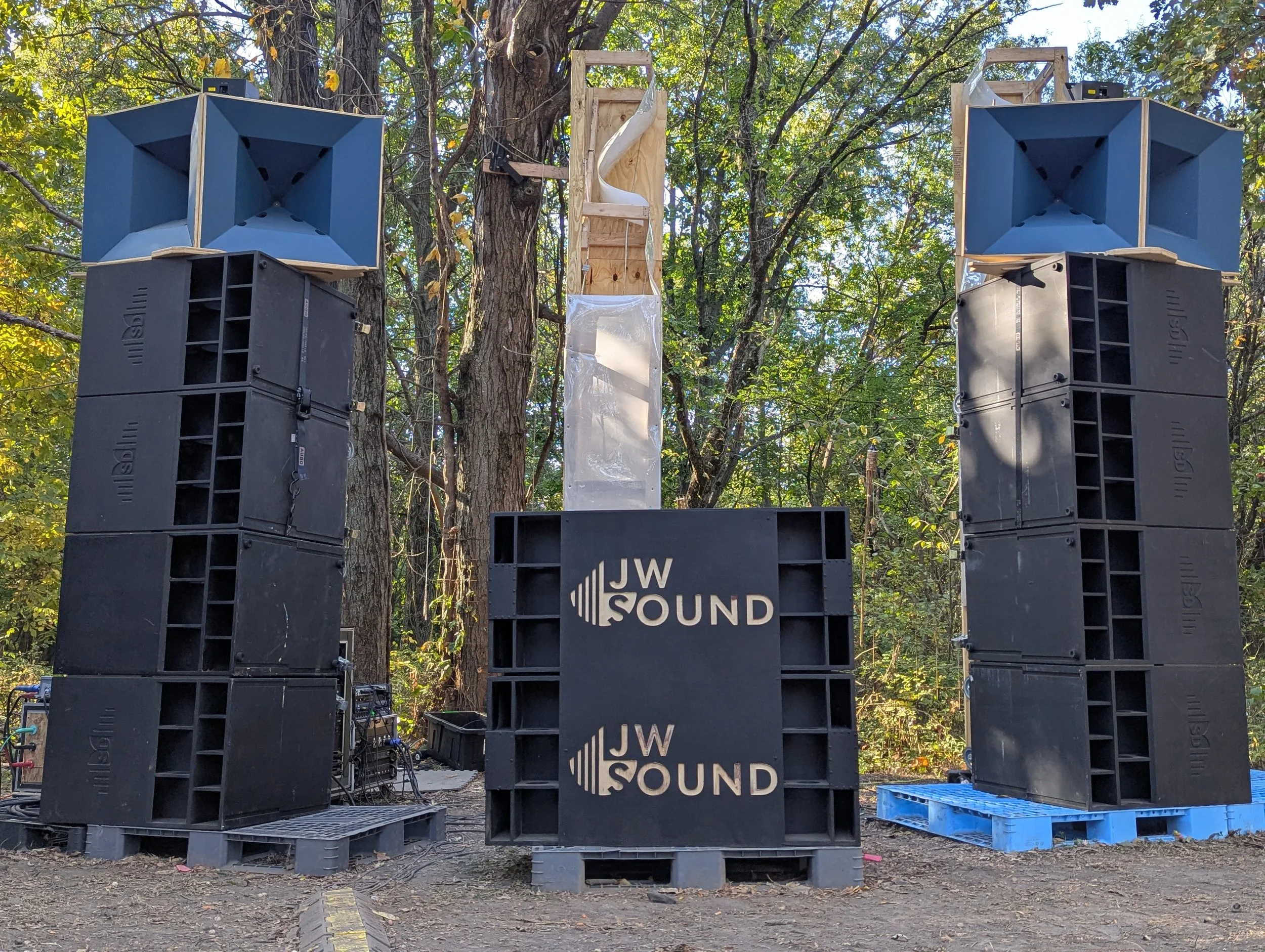

Applications: Touring or install sound systems
Preliminary Specifications
